Beschreibung

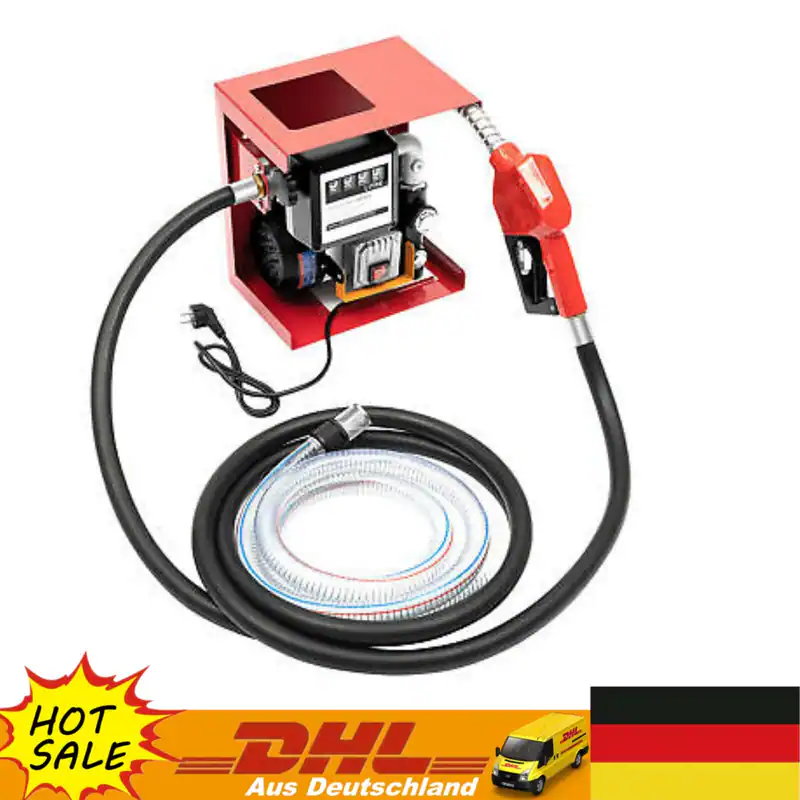

Specifications Material: Cast Iron, Copper, Steel, Cast Aluminum, PVC Surface Treatment: Electroplating, Oxidation Color: Red, Black Style: ‎Piston Instrument Unit: Liter Motor Power: 550W Voltage: 220V/60Hz Max. Lift: 10m/32.8ft Max. Suction: 5m/16.4ft Accuracy: ± 1% Speed: 2800rpm Max Flow Rate of Pump: 60L/min Max Operating Pressure: 50psi/3.5bar Inlet Pipe Length: 2.06m/6.75ft Outlet Pipe Length: 4.08m/13.38ft Power Cord Length: 1.36m/4.46ft Flow Meter Size(L*W*H): 14*14*8.5cm/5.51*5.51*3.34in Gross Weight: 17.8kg/39.24lbs Net Weight: 16.9kg/37.26lbs Product Size: 30.5*20.5*34cm/12*8*13.38in Package Size: 35*33*38.5cm/13.78*13*15.16in Package Included 1*Diesel Transfer Pump 1*Oil Inlet Pipe 1*Oil Outlet Pipe 1*Oil Gun All Accessories for Assembly 550W 60L/min Dieselpumpe Zählwerk Heizölpumpe Diesel Tankstelle Mit Schlauch Neu Beschreibung Description This diesel transfer pump is a multifunctional solution designed to effectively pump diesel for vehicles, construction sites, farms, and other outdoor fuel-powered equipment. Its user-friendly design ensures convenience, reliability, ease of operation, and simple maintenance. It also has an intuitive display function, which can accurately display the amount of fuel pumped per operation. Key Features High Flow Rate: A brass-coil motor with a power of 550W provides an ultra-strong maximum speed of 2800 rpm and a maximum flow rate of 60L/min. Such high efficiency can help you quickly complete the task of pumping or delivering diesel. Accurate Measurement: A four-position precise counting system with a mechanical gear structure can ensure a measurement accuracy of up to ± 1%. And it supports manual zeroing through the knob aside, providing you with convenient adjustment. Durable and Sturdy: The cast iron pump head and impellers combined with a copper coils motor provides strong suction. The cast aluminum casing and steel plate bracket ensure strong toughness and strength, and perform well over a long period of time. PVC inlet pipes have characteristics such as anti-static, hardening resistance, and wall thickness. Convenient&Quick Operation: The automatic shut-off gun and self-priming function make the refueling process more convenient, saving you valuable time and energy. The speed of the oil gun can be freely adjusted, and the internal gear plate can also help you maintain three different speeds, saving time and energy. Rest Assured: The filter effectively purifies diesel to prevent blockage and the check valve prevents the risk of backflow. The switch cover can prevent water or foreign objects from entering the machine. Wide Usage Area: With a 6.75ft inlet pipe, a 13.38ft outlet pipe, and a 4.46ft power cord, you can have a wide usage area without moving the pump, reducing distance limitations. Compact and Portable: It is small in size(12*8*13.38in), lightweight(37.26lbs), and comes with an installation bracket that allows you to take it to the place you need and fix it to start pumping/delivering diesel without the need for professional guidance. The self-contained handle makes it easy to carry. Complete Accessories: In addition to the pump, our package also includes components and parts such as inlet and outlet pipes, a mechanical flow meter, etc., providing you with more comprehensive services. Details Gun-hanging Mouth: It allows you to safely and easily place the oil gun during use, ensuring your safety and maintaining its lifespan. Heat Dissipation Holes: The intensified heat dissipation holes are highly efficient so that the diesel pump does not get hot in continuous use to prolong the product's service life. Application It can be used to pump diesel for automobiles, farms, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, elevators, trucks, fuel compressors, or other engineering machinery, mining machinery, and agricultural machinery. Specifications Material: Cast Iron, Copper, Steel, Cast Aluminum, PV

Specifications Material: Cast Iron, Copper, Steel, Cast Aluminum, PVC Surface Treatment: Electroplating, Oxidation Color: Red, Black Style: ‎Piston Instrument Unit: Liter Motor Power: 550W Voltage: 220V/60Hz Max. Lift: 10m/32.8ft Max. Suction: 5m/16.4ft Accuracy: ± 1% Speed: 2800rpm

Zustand

Neu

Hinweis

Nicht auf die Kanarischen Inseln (Canarias) senden

Angebotspaket

Ja

Nettogewicht in

18 KG

Eingangsspannung

220V ~ 50Hz

max. Fördermenge

60 l/min

Förderhöhe

10-15 m

Pumpenabstand

≈ 30M
